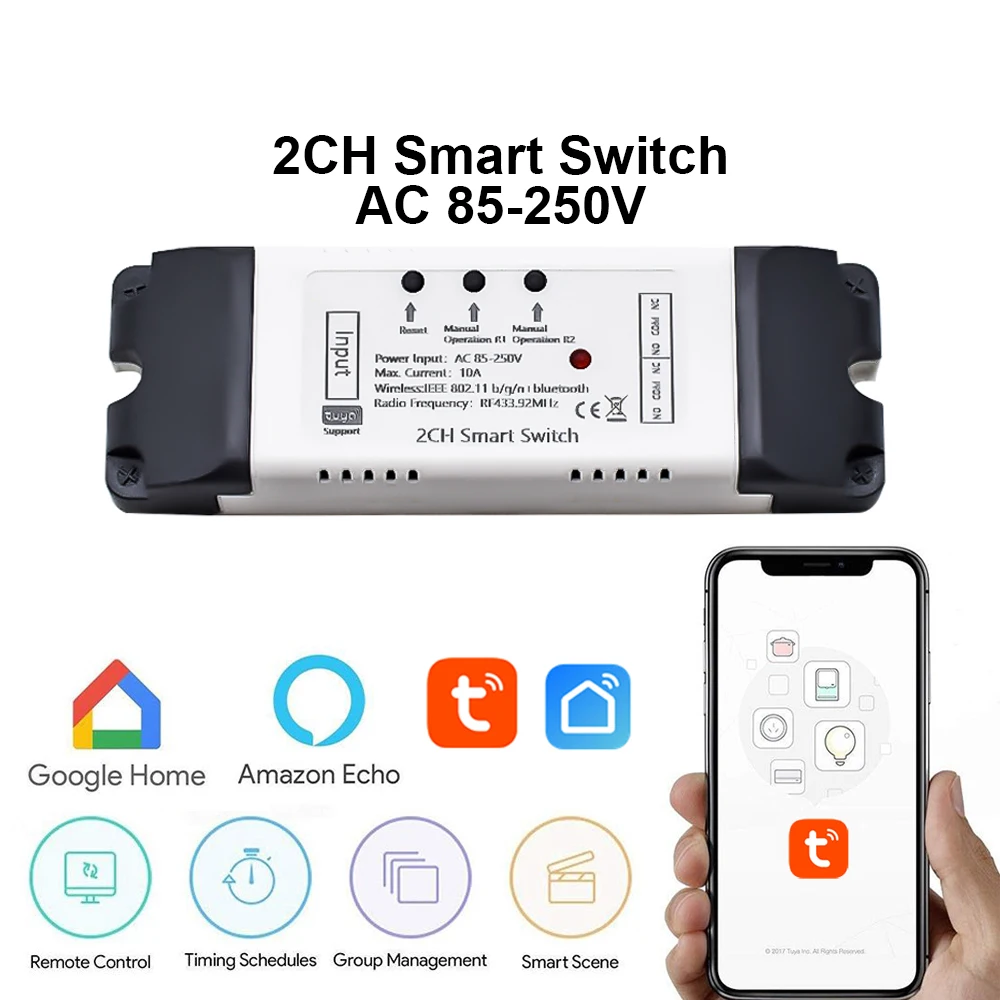

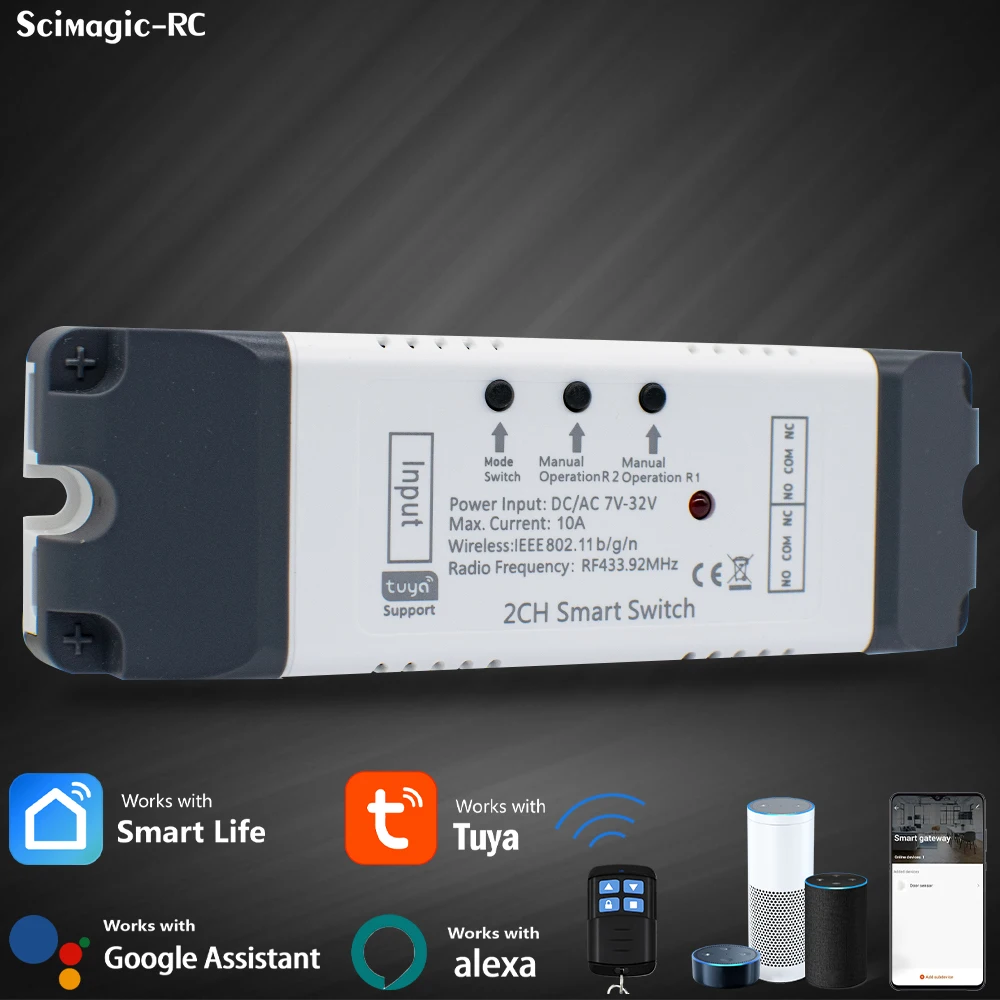

Tuya Wifi Smart Switch Electric Linear Actuator Motor Controller,DC AC 12V 24V 32V,110V 220V RF433 Remote,2CH Pulse Module Relay
Tuya Wifi Smart Switch Electric Linear Actuator Motor Controller,DC AC 12V 24V 32V,110V 220V RF433 Remote,2CH Pulse Module Relay
Couldn't load pickup availability
SPECIFICATIONS
APP Control: yes
APP Name: Tuya Smart life
Brand Name: Scimagic-RC
Categary: DIY 2 Gang Relay
Certification: CE
Choice: yes
Features1: Device Sharing/Group Management
Features2: Timing Schedules
Features3: Inching/Self-locking/Interlock mode
Functions: Remote turn on/off
High-concerned chemical: None
Model Number: Tuya Smart Wifi AC Motor Switch
Origin: Mainland China
Smart home platform: alexa,Tuya,Google Assistant
Support RF433Mhz: yes
WIFI Standard: 2.4GHz wifi (Don't support 5G)
semi_Choice: yes
voltage 1: 7-32V
voltage 2: 85-250V
NOTE
1.The package only have 2 channel relay,it don't include the Electric Linear Actuator Motor
2.It can't control the motor speed.it only can control the motor forward and reverse.
3.If you need to make the RF433 Remote controller work with the relay,you need to add the RF433 remote controller in the app firstly
2 Channel Wifi Dry Contact Switch(Three Working Modes)
It can't control the motor speed.
Use for
1.Remotely give a pulse signal to turn on or turn off Lights,Lamps,pc and other home appliance.
2.Remotelygive a pulse signal to turn on or turn off Garage Door,Door Access,Sliding Door.

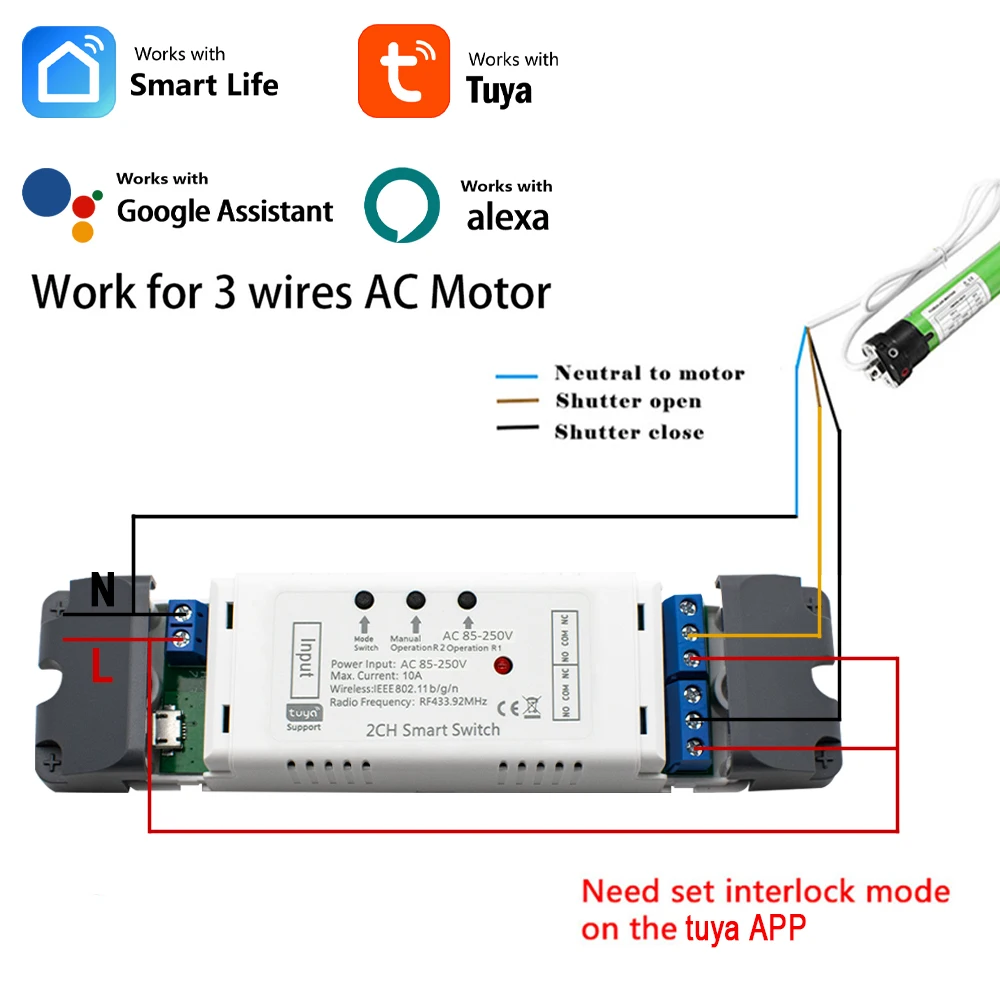

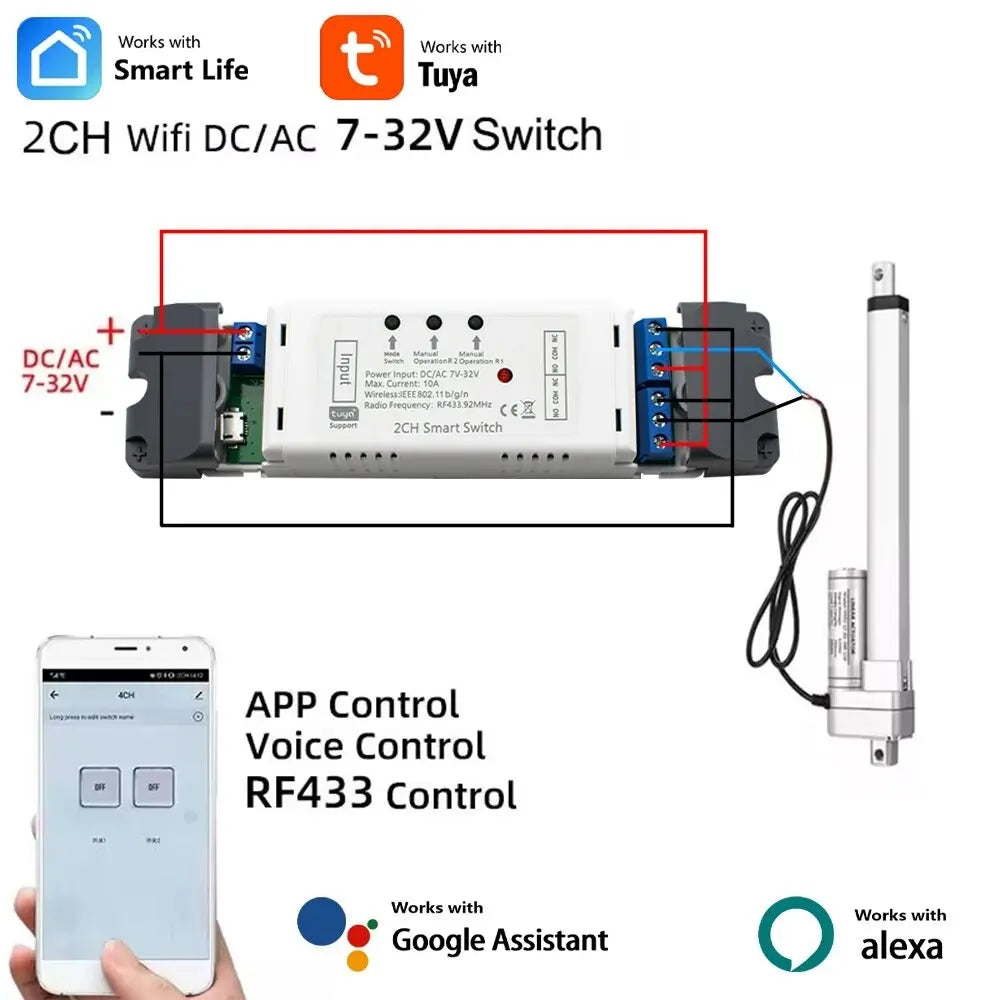

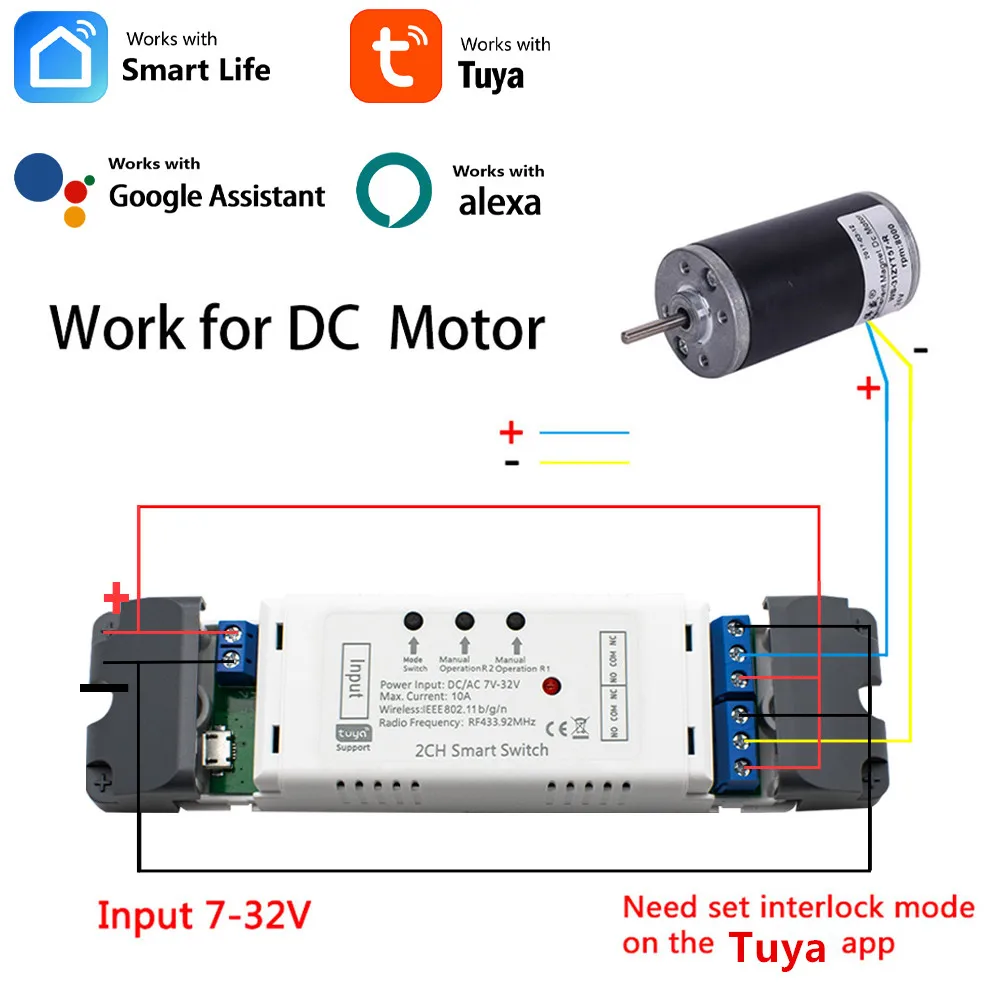

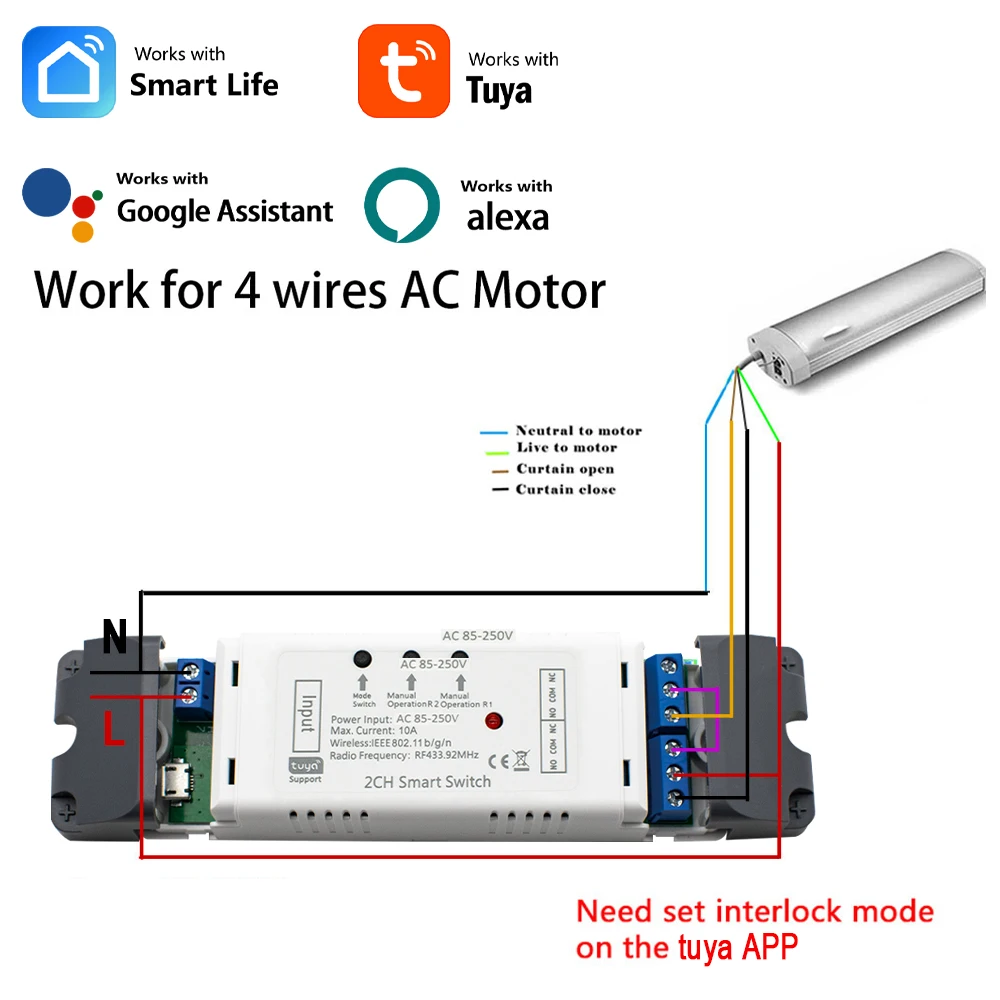

3.Remotely give a pulse signal to control DC Motor,AC Motor to Forward and reverse,such as linear motor
Overview:

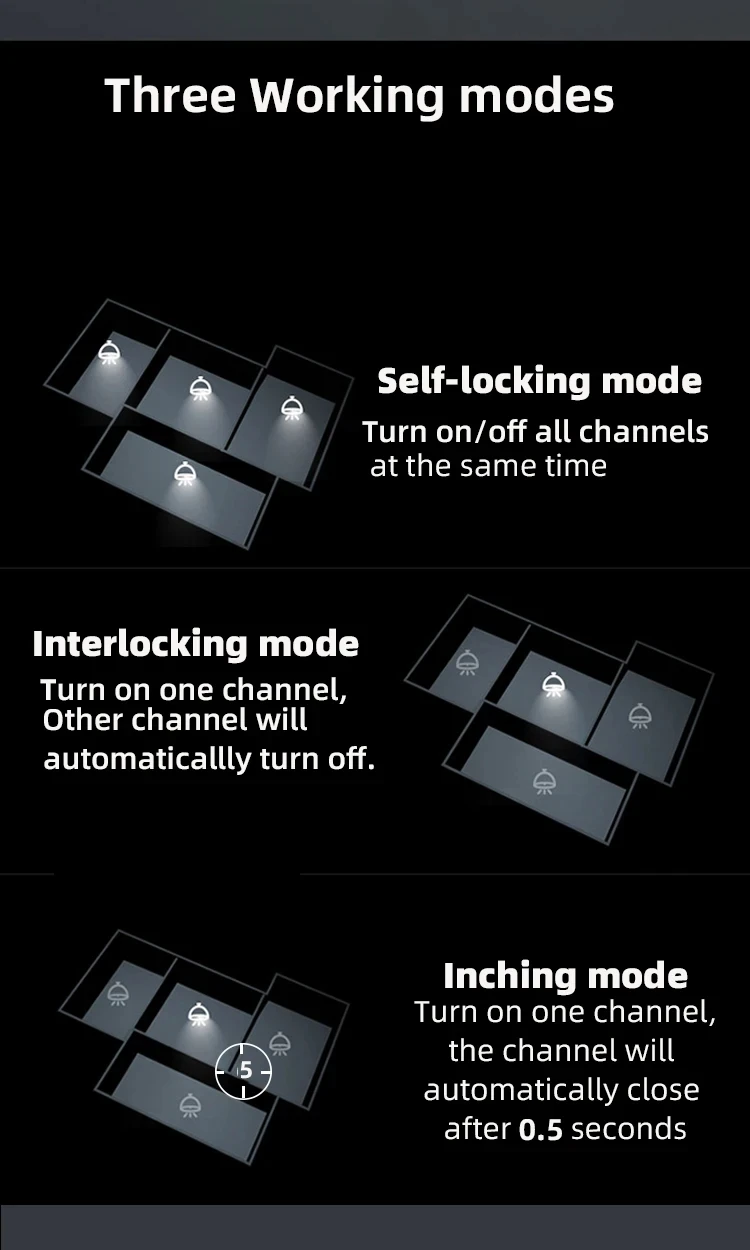

3 Working Mode:
1.Self-locking :
Each channel could be switched on/off seperately.You can turn on/turn off all channel at the same time.
2.Interlocking mode :
Switch on any channel , other channels will be switched off automatically .
3.Inching mode :
Switch on one channel,the channel will be automatically closed after 0.5seconds .Other channel is same as the channel.
If you need to change the mode,you need to change the working mode in app.
Features:

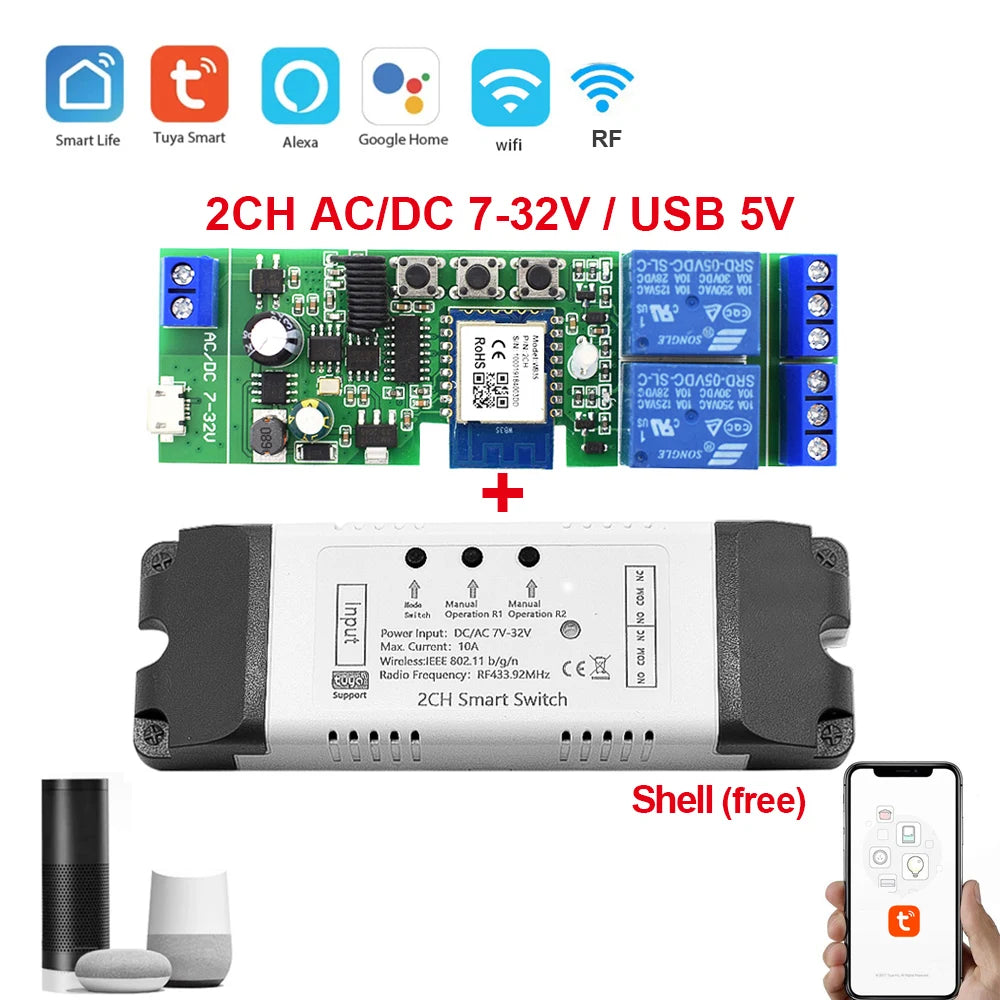

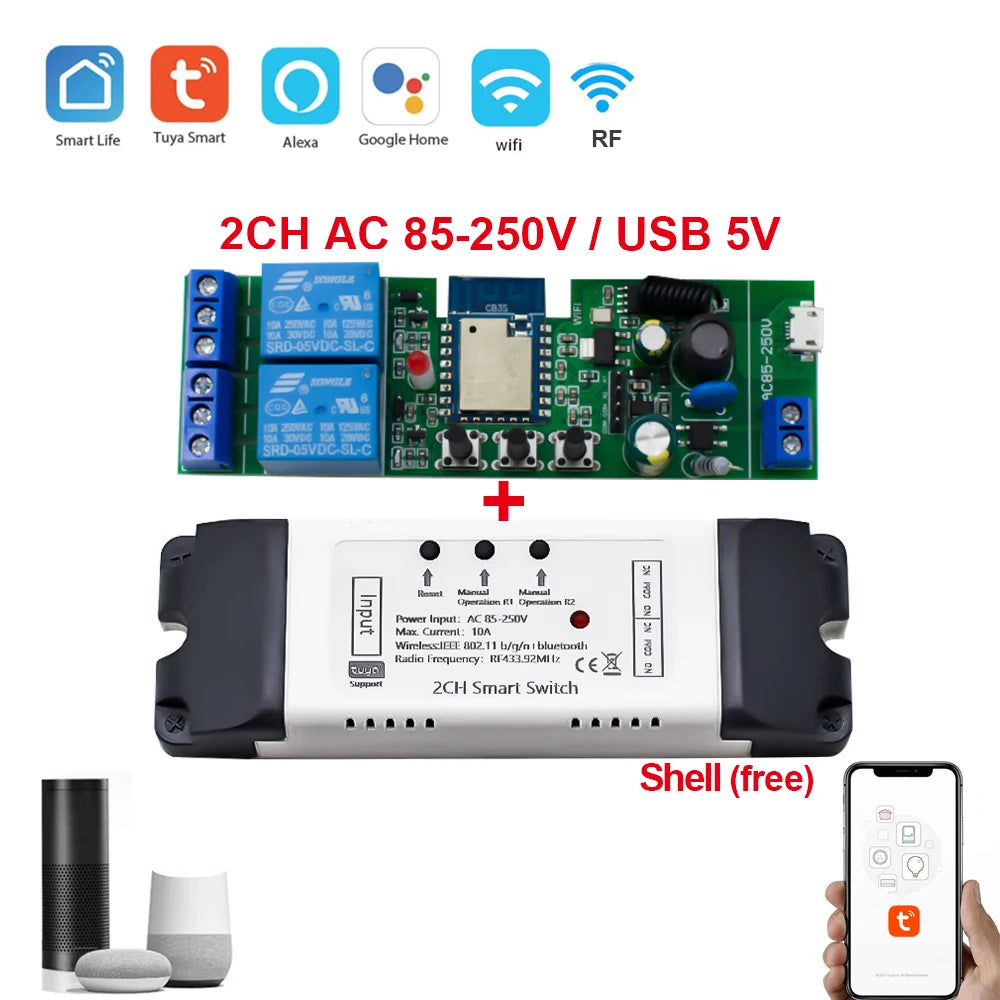

【Two Input Ports】
You could choose USB 5V port or the screw terminal port to supply power in the input to make the pcb board board work.

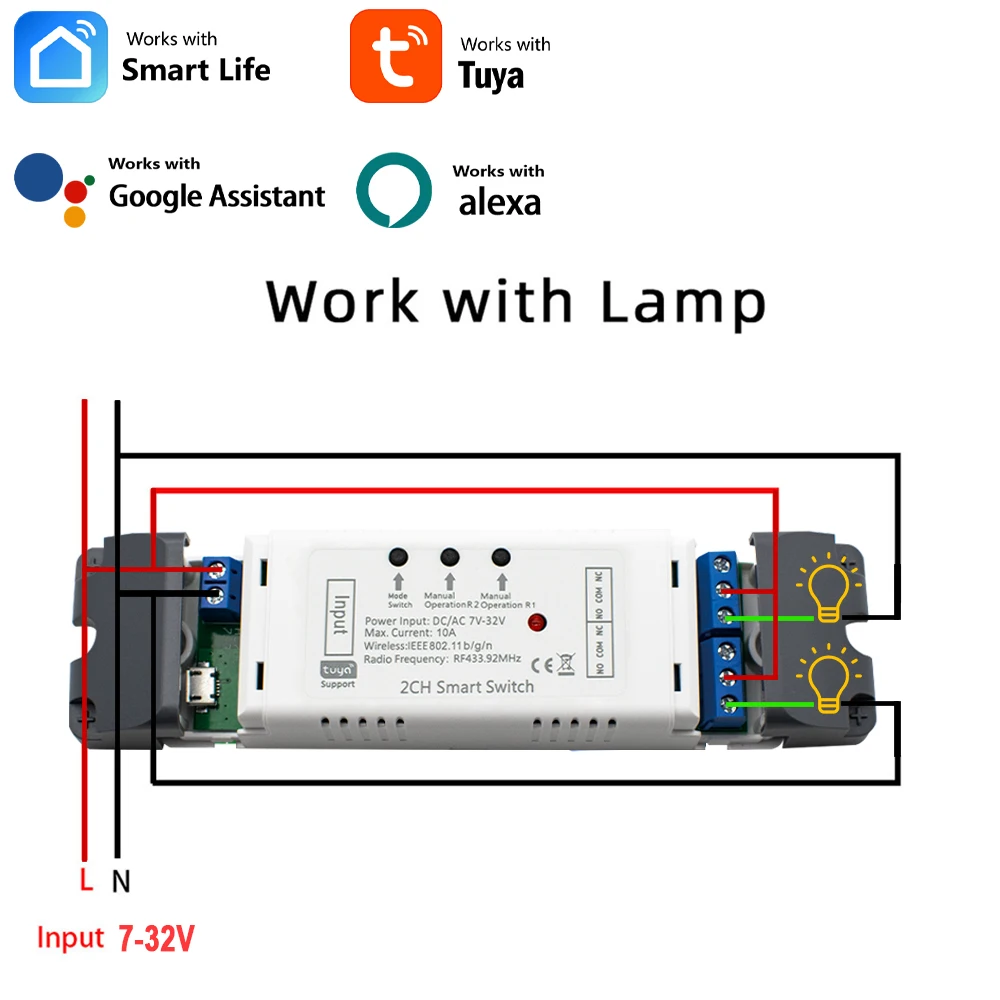

【Dry Contact/Passive Output】
No matter how many power you supply in the input, the output don't have any power voltage
If you do not supply power in output port, the connectted home appliance can't work, you also need to supply power in output.
【Timer】
The connectted home appliances can be automatically turned on/off according to the time schedule.
Each channel can set different time schedule.
Different Ways to Control the WIFI Module
【APP Remote Control】
You can control the connectted home appliance in Tuya or smart life APP anywhere and anytime.Such as light, electric kettle, electric rice cooker, electric curtain, etc.
【RF433 Control】
The WIFI Module support RF433 Frequency,and you can control the WIFI module by RF433mhz remote controller.
【Mobile Phone Control】
When you go outside or at home,you could control the device in your smart phone by 2G/3G/4G Mobile Network or WIFI.
(Note:The router need to onlinet.The WIFI module need to keep a close distance with the router and the wifi module need to online in Tuya Smart Life APP)
【Voice Control 】
Compatible with Alexa and Google Assistant, you can use the voice control to turn it on/off the connectted home appliances .
【Share Control】
One device can control by Multiple phones,you can share the wifi module with your family.So your family member also can control the module.
【Group Control】
one phone can control Multiple smart device.You can add the wifi module and other smart device in a group,and then turn on/off all smart device at the same time.

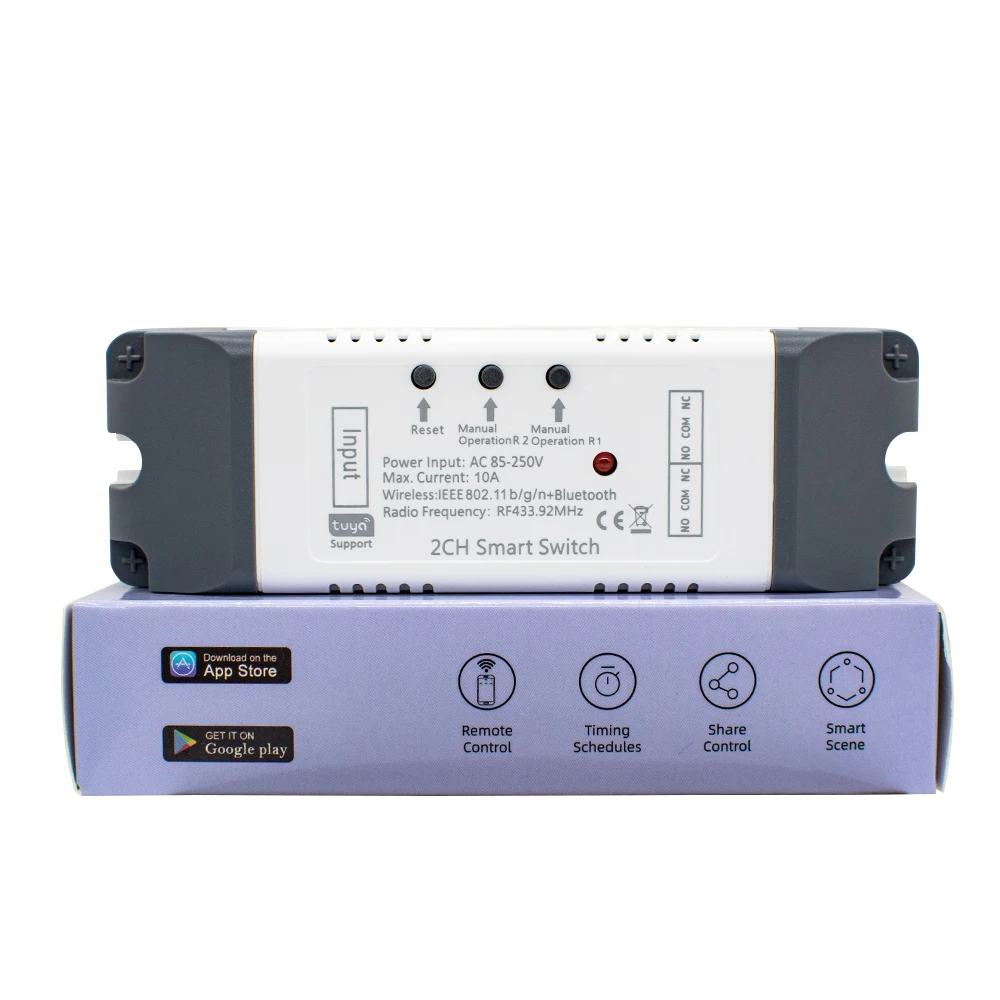

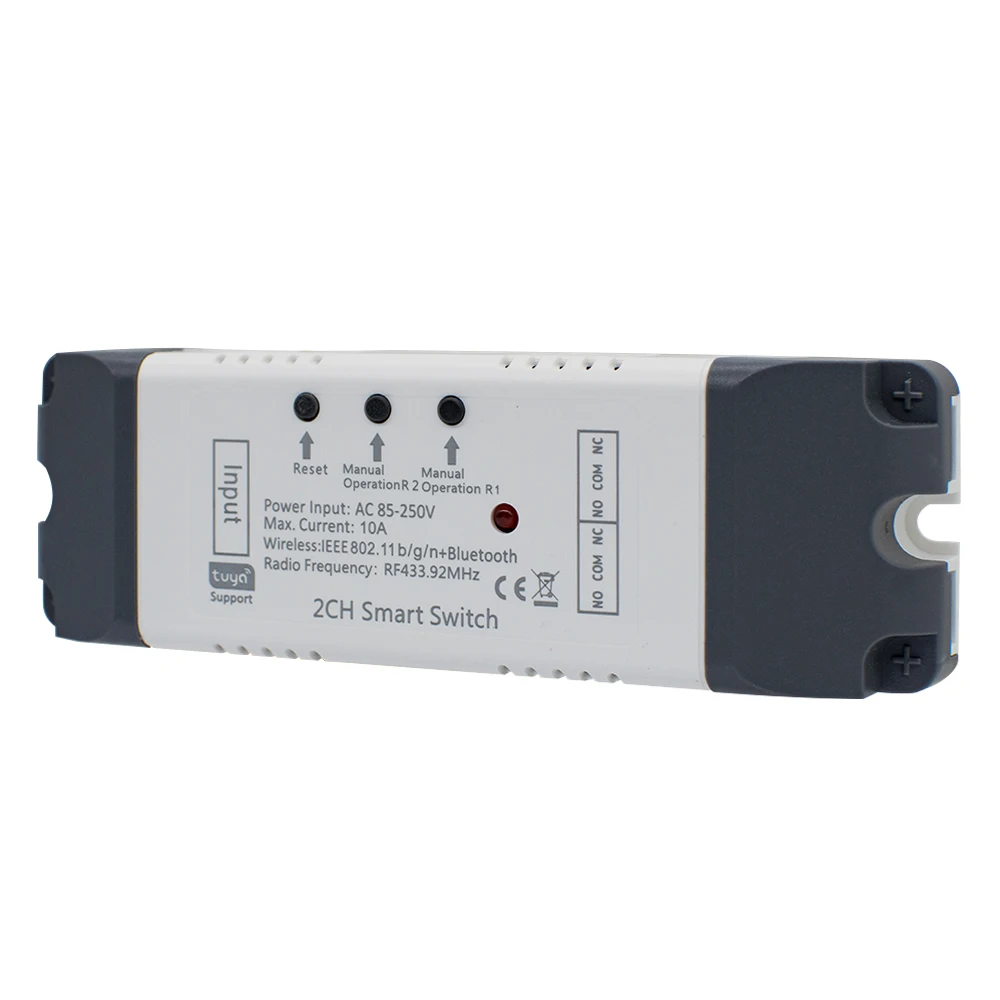

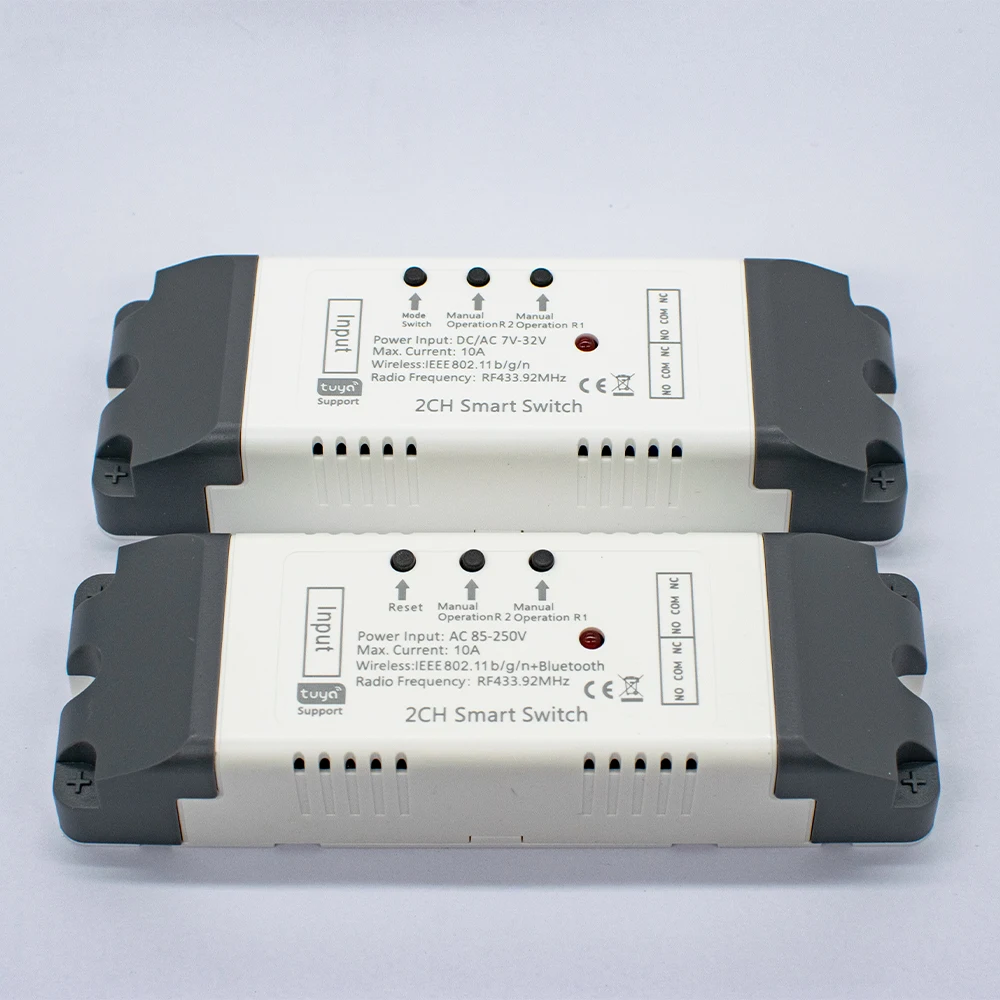

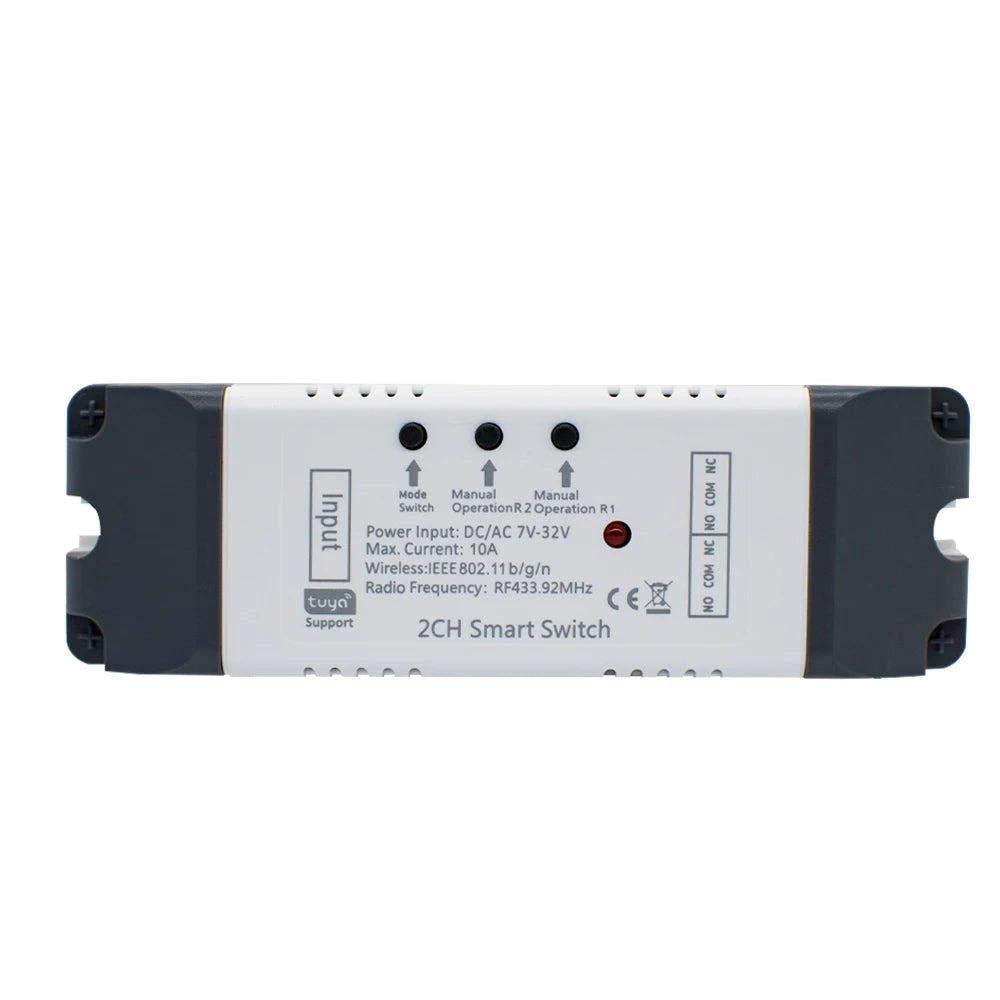

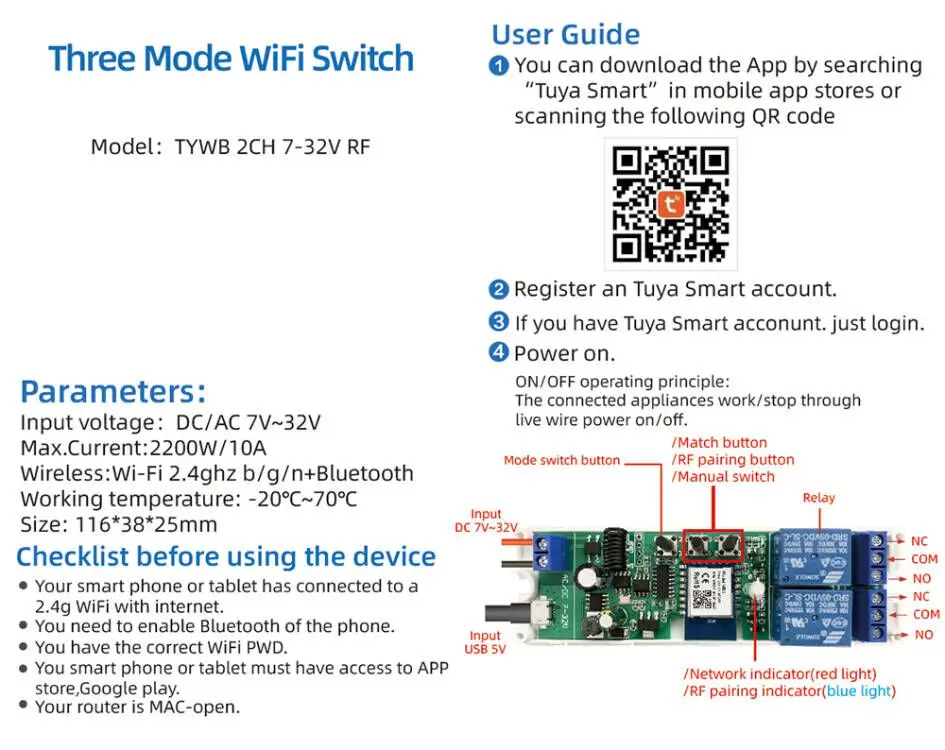

Specification:
Maximum current≤ 10A
Input 1: Micro USB 5V
Input 2 (screw terminal port): :D C/AC 7-32V AC 85-250V
NO NC COM Output: Output Signal (Dry Contact)
Operating temperature: -20-70°C
Operating humidity: 40% to 80% RH
WIFI standard: 2.4GHz, IEEE 802.11 b/g/n (5G not supported)

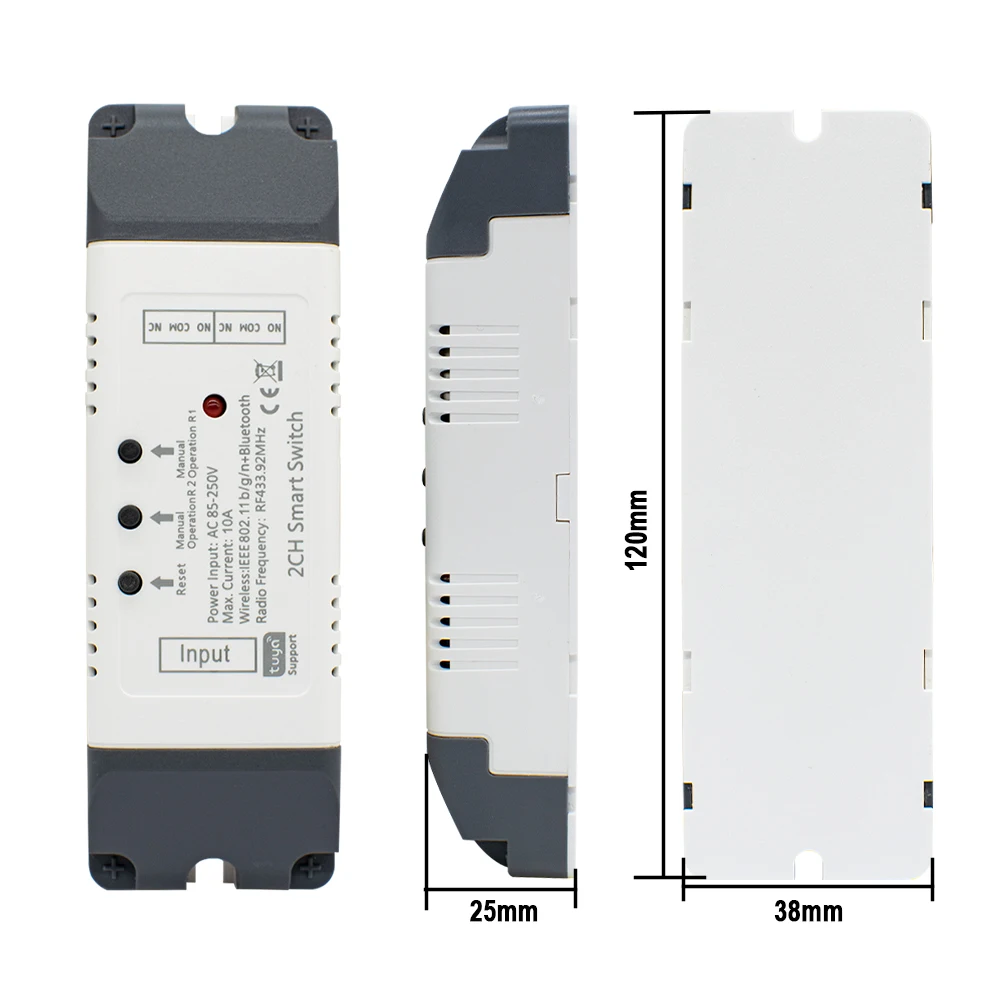

Size: 120*38*25mm
APP: Tuya/Smart Life
Timer & Time Schedule
Set time schedules to turn on/off lights

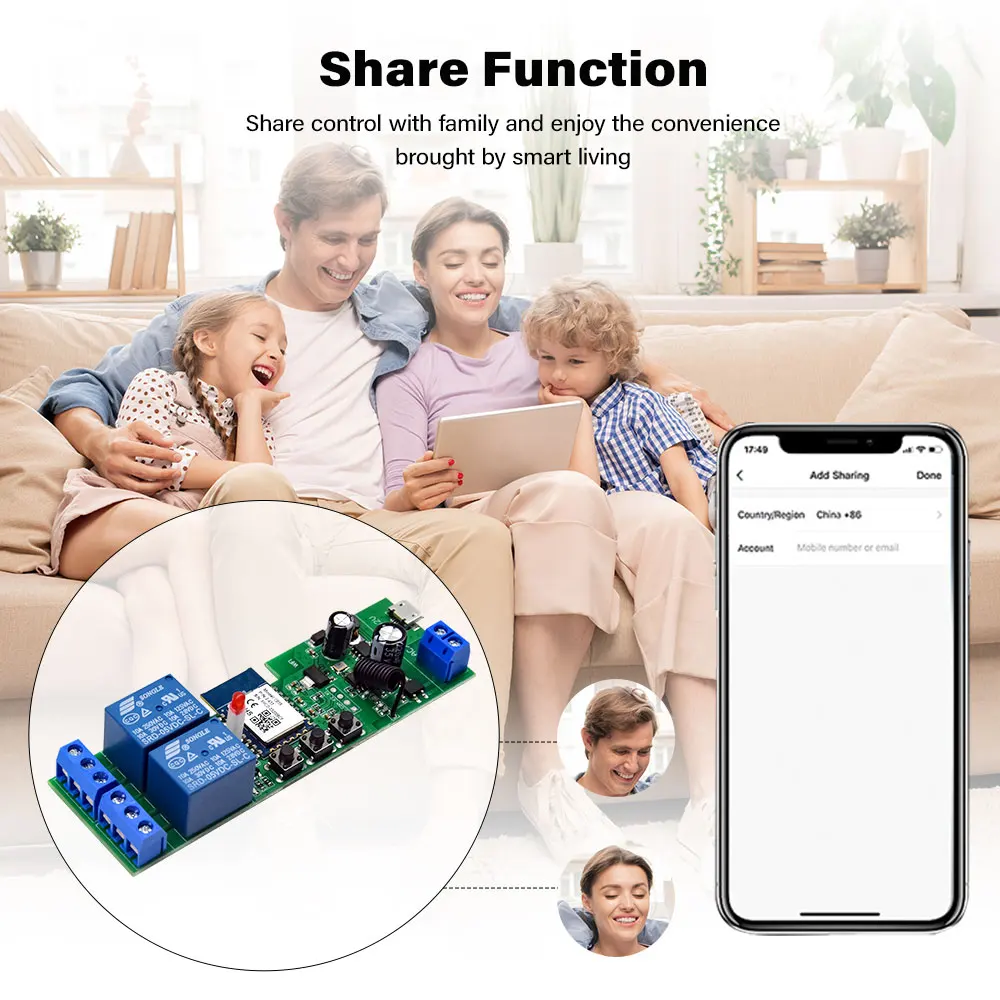

Share Control
Share the device with your family or friends so that they can also control the devices remotely

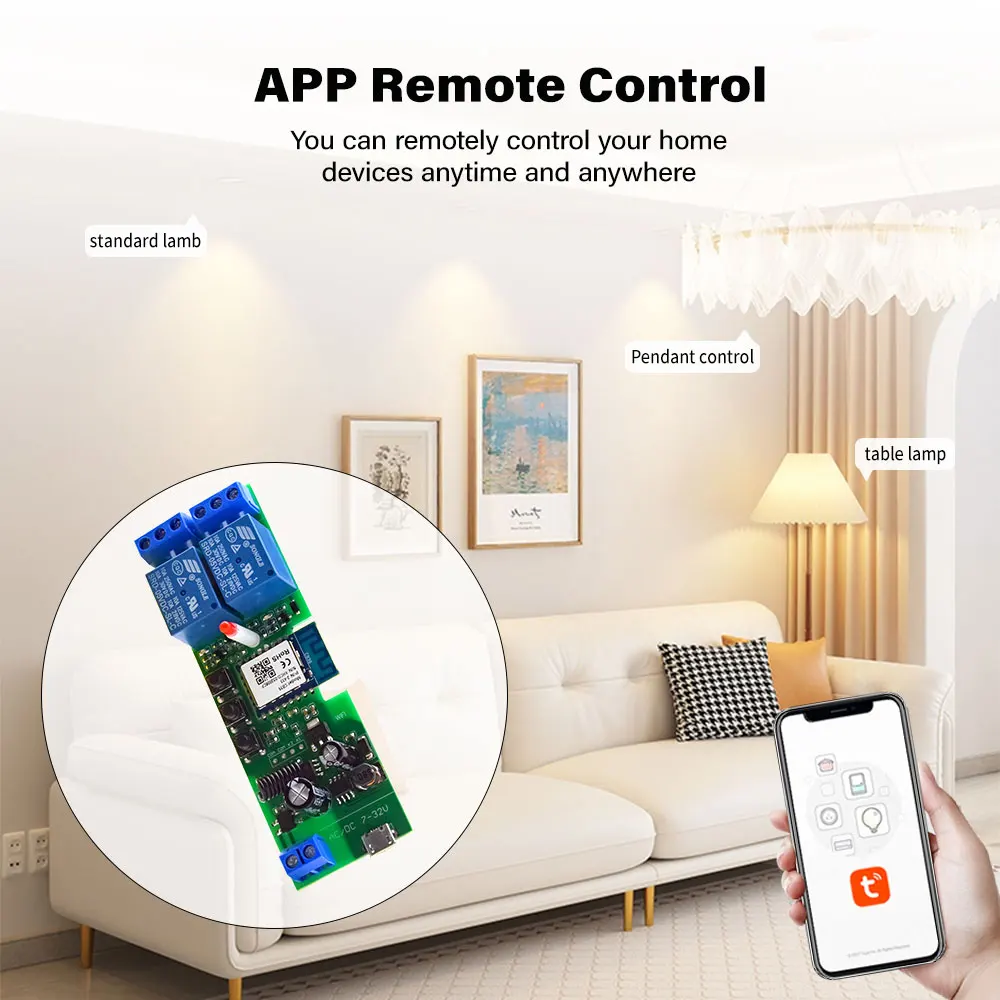

APP Control
You can remote turn on/off household appliances and set timing schedules to turn on/off the household appliances via app Tuya/Smart life anywhere anytime.
such as lights, celectric curtains ,electric curtains fans.
Voice Control
Compatible with Google Assistant and Alexa
Voice control to turn on/off your home applicances

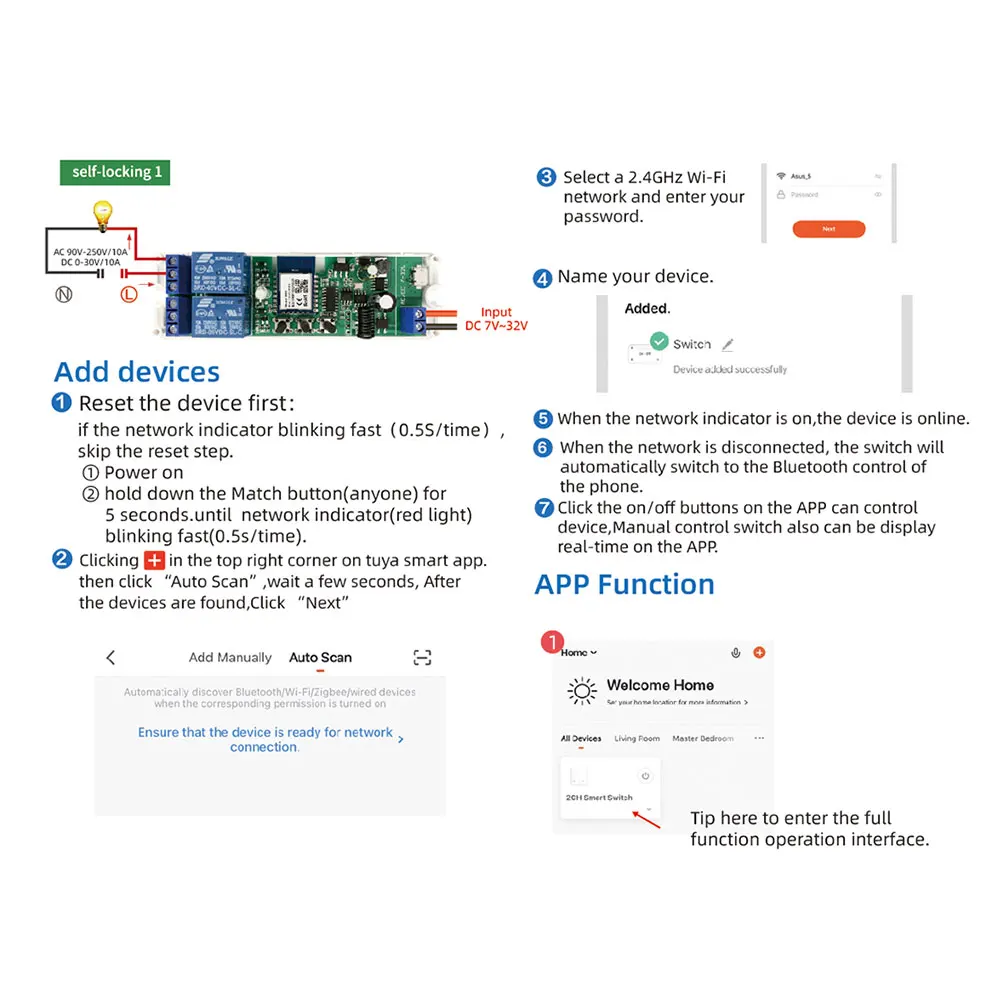

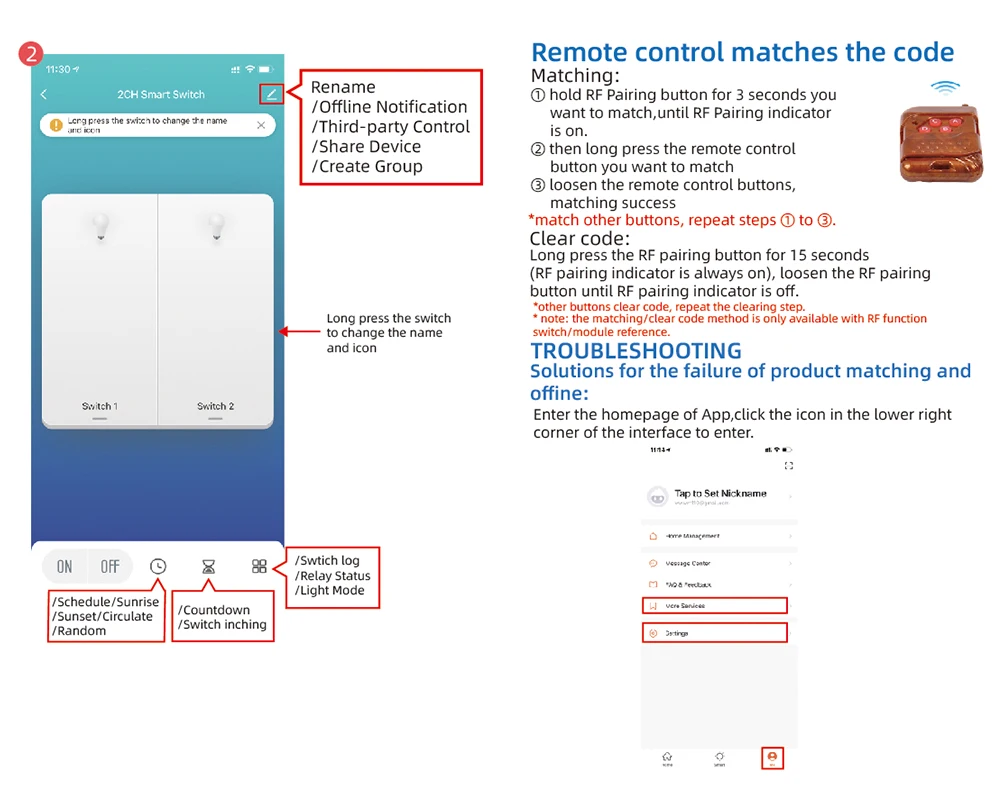

How to pair RF433 remote controller with with the devices.
1.Press the RF433 pairing button for 4 seconds,and wait until the blue led indicator turn on.
2.press any key of RF433 remote controller, and then you can pair the channel with one key of RF433 remote controller successfully
If you need to pair other key of the RF433 Remote controller and other channel, you need to repeat the step.
