Cloweit APS30 20/40mm Safety Grating Light Curtain Fiber Optic Sensor Infrared Radiation Detector Punch Photoelectric Protection
Cloweit APS30 20/40mm Safety Grating Light Curtain Fiber Optic Sensor Infrared Radiation Detector Punch Photoelectric Protection
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: cloweit
Certification: FCC,CE,ce,FCC
Current: 200 mA
Features: through beam optical synchronous safety sensors
High-concerned chemical: None
Is Smart Device: No
Item Type: SWITCHES
Material: Aluminium Alloy
Model: APS30-0420/40,APS30-0620/40,APS30-0820/40
Model Number: APS30-04/06/08 20/40
Origin: Mainland China
Output: NPN/PNP
Protection: Finger protection (20/40mm)
Protection Height: 120/200/280mm
Range: 3m/5m/10m through beam distance

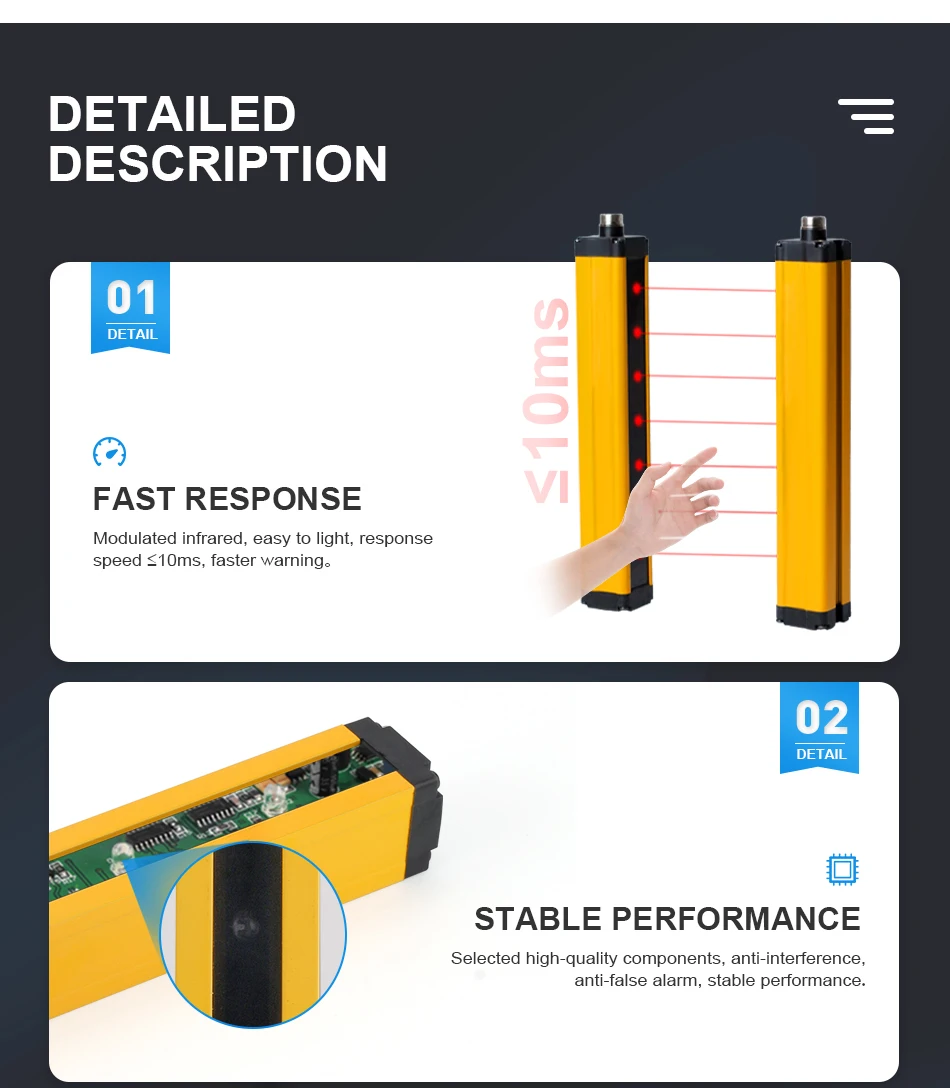

Response time: 10ms
Switch Type: Photoelectric Switch
Warranty: 1 year
NUMBER OF BEAMS |
4-54 Anix (Can order up to 200 Anix) |
PHOTOELECTRIC SPACING |
40mm |
DETECTION HEIGHT |
120-2120mm |
DETECTION DISTANCE |
3/5/10/15 Meter(15m customized, please |
OPERATING VOLTAGE |
DC24V±10% |
POWER CONSUMPTION |
5W |
OUTPUT METHOD |
NPN/PNP（Transistor） |
RESPONSE TIME |
≤10ms |
SHAPE MATERIAL |
Aluminum alloy |
LIGHT CURTAIN MATERIAL |
Detection method、Transsmin type |
AMBIENT TEMPERATURE |
20℃，RH≤85% |
INSULATION RESISTANCE |
＞100MΩ |
ANTI-INTERFERENCE |
10000Lux（Angle of incidence ≥5°） |

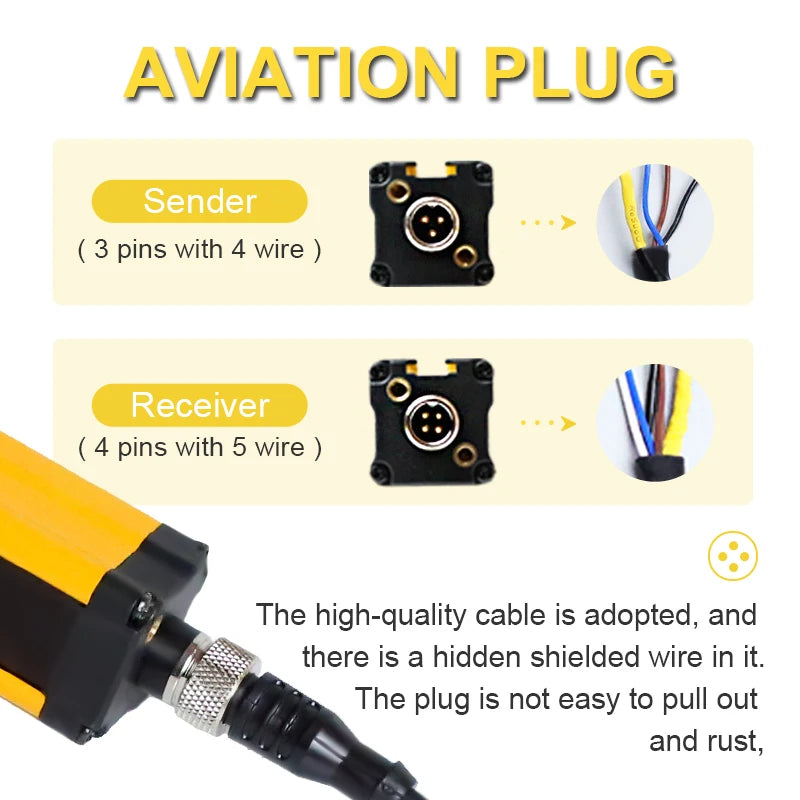

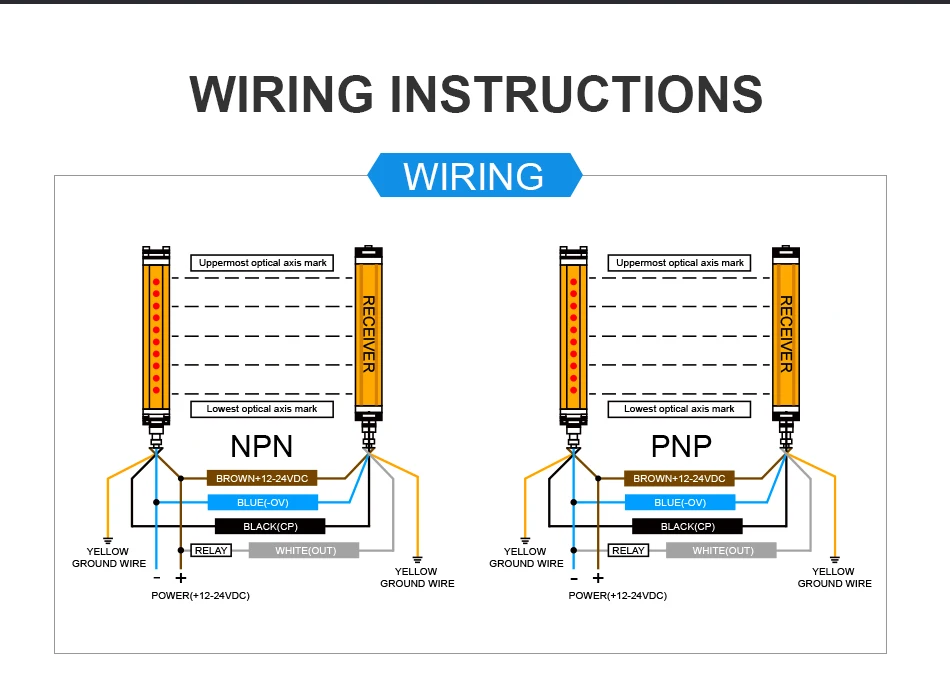

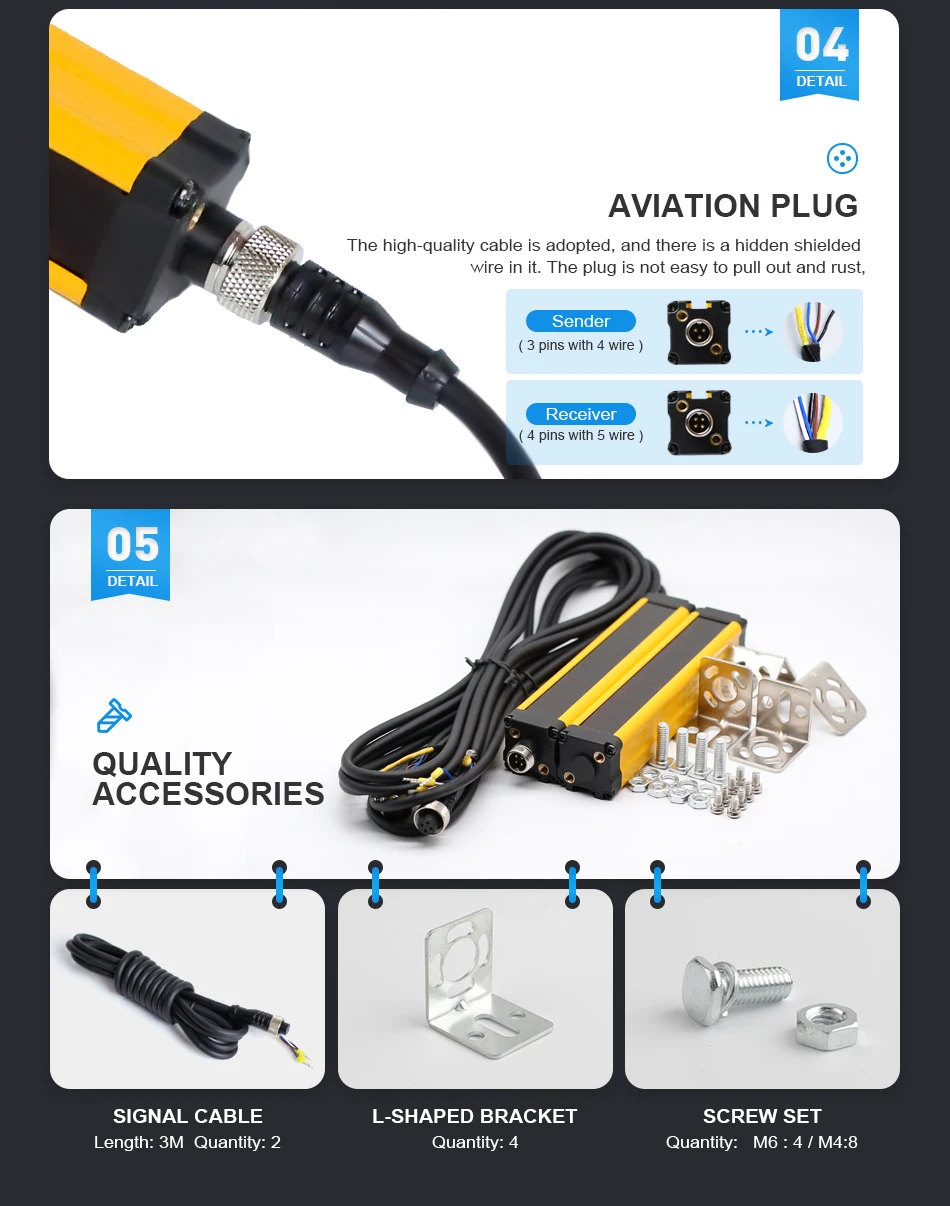

CONNECTION METHOD |
M12 connector cable（3 pins with 2 wire） |
M12 connector cable（4 pins with 4 wire） |
PROTECT THE CIRCUIT |
Reverse connection Protection/ |
Output short circuit protection |
DIELECTRIC STRENGTH |
AC1500V.60S |
OPERATING TEMPERATURE |
-15℃~+65℃ |
STORAGE TEMPERATURE |
-25℃~+75℃ |

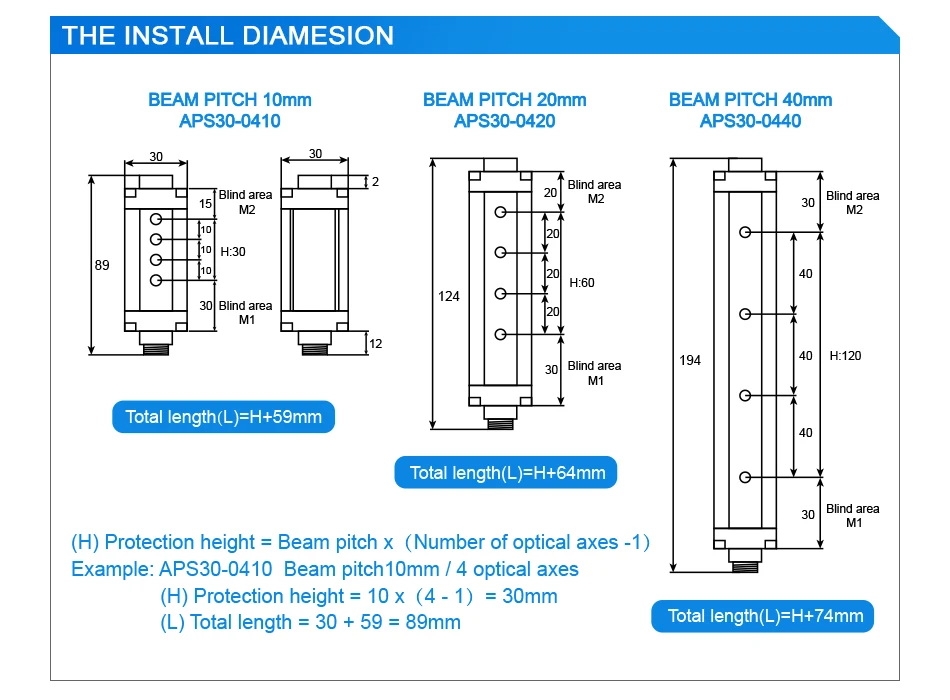

SECTION SIZE |
30*30mm |
Mode |
Anix |
Anix |
Protection |
Top Cap |
Dead |
Below |
The |
Body |
|
H（mm） |
C（mm） |
A（mm） |
B（mm） |
D（mm） |
E（mm） |
F（mm） |
G（mm） |
||
20mm |
|||||||||
APS30-0420NB |
4 |
20 |
60 |
2 |
20 |
30 |
12 |
7 |
124 |
APS30-0620NB |
6 |
20 |
100 |
2 |
20 |
30 |
12 |
7 |
164 |
APS30-0820NB |
8 |
20 |
140 |
2 |
20 |
30 |
12 |
7 |
204 |
40mm |
|||||||||
APS30-0440NB |
4 |
40 |
120 |
2 |
30 |
30 |
12 |
7 |
194 |
APS30-0640NB |
6 |
40 |
200 |
2 |
30 |
30 |
12 |
7 |
274 |
APS30-0840NB |
8 |
40 |
280 |
2 |
30 |
30 |
12 |
7 |
354 |
